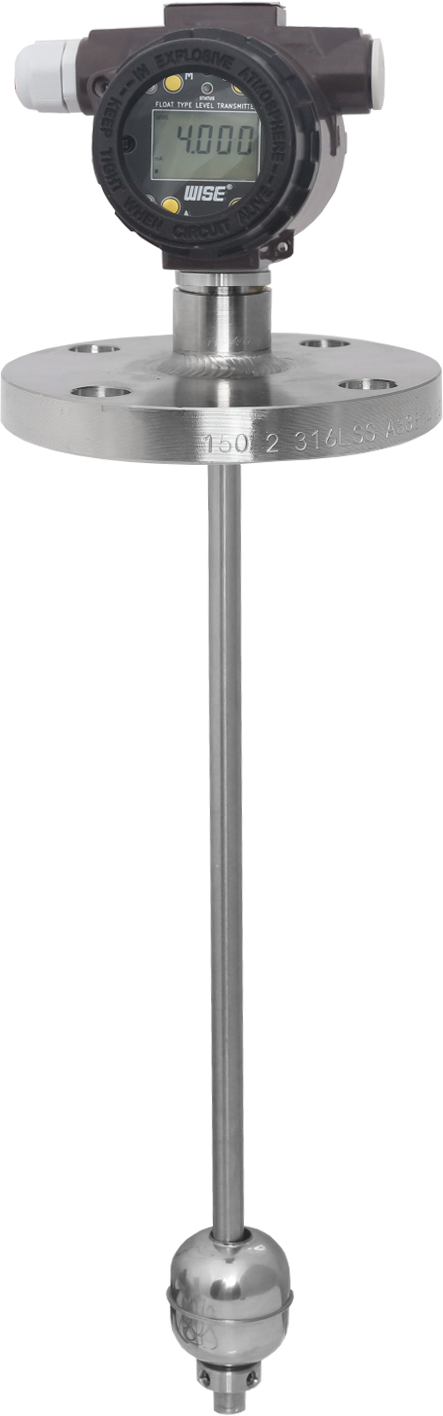

SMT4000_Magnetic Float type level transmitter

SMT4000

Service intended

The SMT4000 series is a Magnetic float type level transmitter, which uses buoyancy to continuosly measure the water level inside the vessel.
When a float designed/manufactured for the specific gravity of fluid moves up and down due to buoyancy, the Reed switch attached to the sensor detects magnetic in the float and changes its resistance value. You can measure the water level inside the vessel with the converted current value.

Standard features

Part List SMT4100 (General) SMT4200 (High Temp.)
Encolsure type Ex-proof
- KCs, Ex d IIC T6
- IP66 @ Max. 80 ºC
Weather proof (IP66)
Ex-proof
- KCs, Ex d IIC T6
- IP66 @ Max. 150 ºC
Weather proof (IP66)
Ambient Temp.

-25 ~ 65 ºC

Max. Temperature Max. 80 ºC Max. 150 ºC (With Cooling Fin)
Max. Pressure 20 kgf/cm²
Material Housing : A.D.C 12
Float : 316L SS
Wetted parts : 304SS, 304L SS, 316SS, 316L SS, Etc.
Applicable
Specific Gravity
0.8 ~ 1.4 (For Mounting size 1")
0.6 ~ 1.1 (For Mounting size 2")
0.7 ~ 1.4 (For Mounting size 3" & 4")
Resolution For Mounting size 1" : 5 mm
For Mounting size 2" to 4" : 10 mm
Power supply DC 24V (DC 17~36 V)
Out Put DC 4~20 mA (2-Wire)
DC 3.6 ~ 21 mA @ NAMUR NE43
Cable Entry M20 X 1.5P
Etc.
Max. Length 1500 mm (For 1" Float)
3000 mm (For 2" Float)
5000 mm (For 3" and 4" Float)
